帶線帶標內外袋袋泡茶包裝機及掛耳咖啡內外袋包裝機的外袋尺寸的計算公式Take line to take the inner and outer bag tea bag packing machine and hanging ears coffee inside and outside the bag packaging machine outside the bag size calculation formula:
1、帶線帶標內外袋袋泡茶包裝機--內袋翻轉90度帶線帶標型：用（袋泡茶包裝機的內袋長度+20）乘以2=袋泡茶包裝機的最小外袋膜寬,用袋泡茶包裝機的內袋膜寬除以2+14+10=袋泡茶包裝機的最小外袋袋長。take line to take the inner and outer bag tea bag packaging machine, bag turn 90 degrees in line with with standard type: use (tea bag packaging machine inside the bag length + 20) multiplied by 2 = tea bag packaging machine, the minimum outer bag film wide, with the tea bag packaging machine bag film width divided by 2 + 14 + 10 = tea bag packaging machine, the minimum outer pocket bag length.

2、帶線帶標內外袋袋泡茶包裝機--內袋直下不帶線、標型：用（袋泡茶包裝機的內袋膜寬除以2+20）乘以2=袋泡茶包裝機的最小外袋膜寬，用袋泡茶包裝機的內袋袋長+14+10=袋泡茶包裝機的最小外袋袋長。Take line to take the inner and outer bag tea bag packaging machine, bag inside straight down without line, standard type: use (tea bag packaging machine inside the bag film width divided by 2 + 20) multiplied by 2 = tea bag packaging machine, the minimum outer bag film wide, with the tea bag packaging machine bag bag + 14 + 10 = long tea bag packaging machine, the minimum outer pocket bag length.

3、掛耳咖啡內外袋包裝機內袋翻轉90度型：用（掛耳咖啡包裝機的內袋長度+25）乘以2=掛耳咖啡包裝機的最小外袋膜寬，用掛耳咖啡包裝機的內袋膜寬除以2+20+10=掛耳咖啡包裝機的最小外袋袋長。Hanging ear coffee inside and outside the bag packaging machine bag type: turn 90 degrees in coffee packing machine (hanging ears inside the bag length + 25) multiplied by hanging ears coffee packing machine minimum 2 = wide bag film, with hanging ears coffee packing machine inside the bag film width divided by 2 + 20 + 10 = hanging ear the minimum outer pocket bag length coffee packing machine.

4、掛耳咖啡內外袋包裝機內袋直下不帶線、標包咖啡型（比較大包）：用（掛耳咖啡包裝機的內袋膜寬除以2+25）乘以2=掛耳咖啡包裝機最小外袋膜寬，用掛耳咖啡包裝機的內袋袋長+20+10=掛耳咖啡包裝機的最小外袋袋長。Hangers coffee inside and outside the bag packaging machine, standard package way down the bag without line type coffee (bundle) : use (hanging ears coffee packing machine inside the bag film width divided by 2 + 25) multiplied by the hanging ear coffee packing machine minimum 2 = wide bag film, with hanging ears coffee packing machine inside the bag bag length + 20 + 10 = hanging ear the minimum outer pocket bag length coffee packing machine.

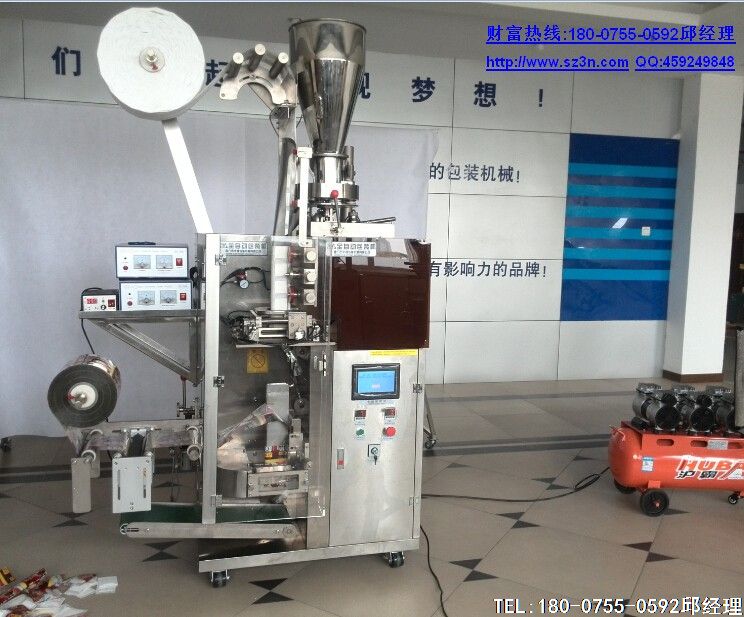

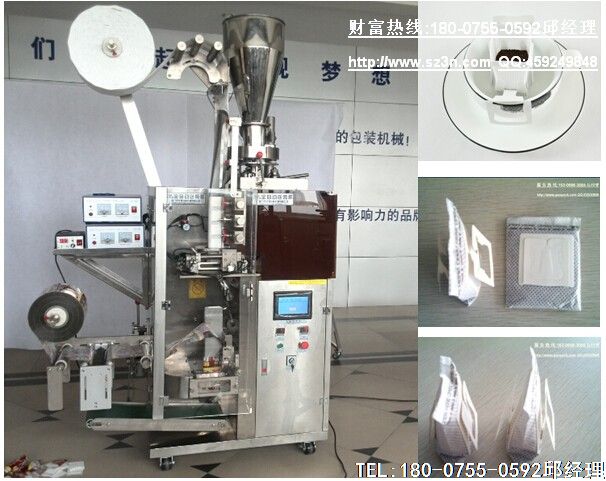

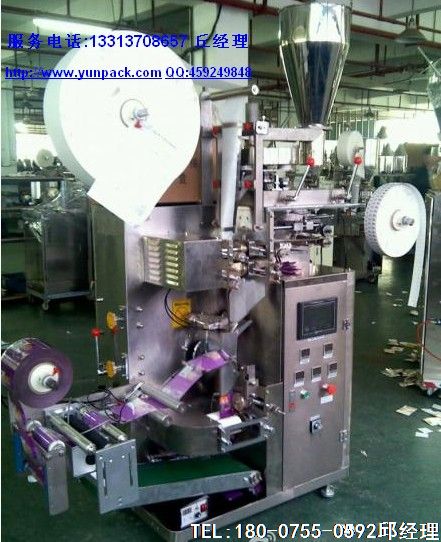

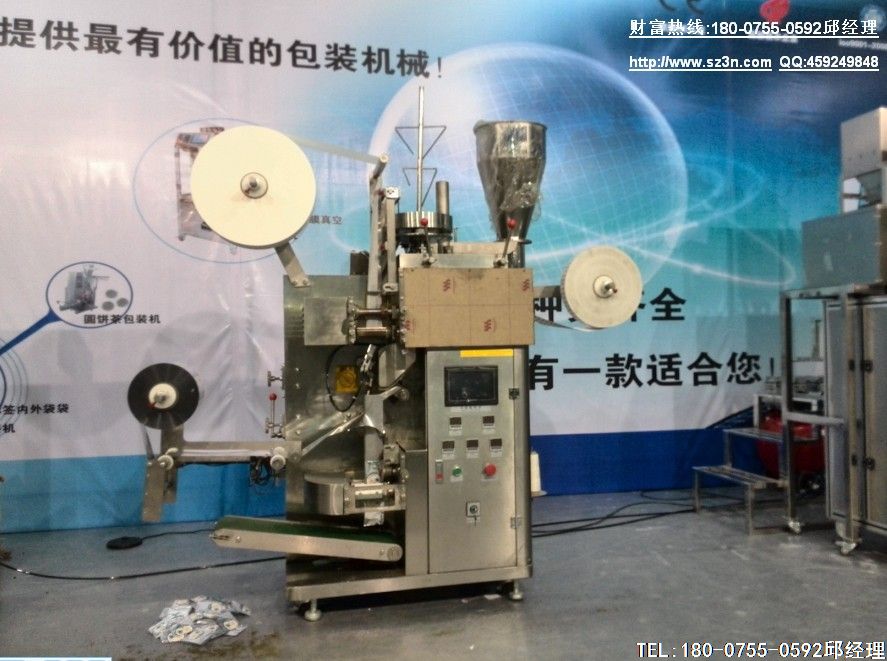

內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機，袋泡茶內外袋包裝機Line inside and outside the bag with the tea bag packing machine, inside and outside the bag of tea bag packaging machine, tea bag inside and outside the bag packaging machine

一、內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機的適用范圍：Line inside and outside the bag with the tea bag packing machine, bag tea bag packaging machine inside and outside of the scope of application:
本機適用于茶葉、藥茶、保健茶草根類等小顆粒物的內外袋一次性包裝。The machine is suitable for tea, herbal tea, health tea grassroots small particles inside and outside the bag, such as disposable packaging.
二、內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機的本機特點：Line inside and outside the bag with the tea bag packing machine, inside and outside the bag of tea bag packaging machine this machine features:
1.外封紙由步進電機控制，袋長穩定、定位準確；Paper WaiFeng consists of stepper motor control, bag length stable, accurate positioning;
2.采用PID調節溫度控制器，溫度控制得更準確；Using the PID temperature controller, temperature control more accurate;
3.采用PLC控制整機的動作，人機界面顯示，操作方便； PLC control action of the machine, the man-machine interface display, easy to operate;
4.所有可接觸物料部分為SUS304不銹鋼制作，保證產品的衛生可靠；All parts contacting material of SUS304 stainless steel, ensure health of products;
5.部分工作氣缸采用原裝進口件，保證其工作準確與穩定。Part of the working cylinder adopts imported parts, ensure the accuracy and stability.
6.本機附加裝置可完成平口剪切、日期打印、易撕口等功能。 This machine can complete the flat cutting, date printing, easy tear etc. Function.

三、內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機的主要技術參數：Line inside and outside the bag with the tea bag packing machine, bag tea bag packaging machine inside and outside the main technical parameters:
型號：SN-169 Model: SN - 169
封口形式：三邊封     計量范圍： 1-15克/包    生產能力：30-60袋/分鐘
Sealing form: three edge-sealing   measuring range: 1-15 g/bag   production capacity: 30 to 60 bags/min
內袋尺寸：長50-75
