茶葉包裝機做什么用的？茶葉包裝機就是把茶葉自動包裝起來的一類機器。 What does the tea packing machine do? Tea packing machine is a kind of machine that packs tea automatically.下面袋泡茶、飲品茶、花茶、茶葉自動包裝綜合解決方案提供商深圳市三農包裝機械有限公司就給大家介紹一下，最常見的茶葉包裝機（袋泡茶包裝機）之一--內外袋袋泡茶包裝機。

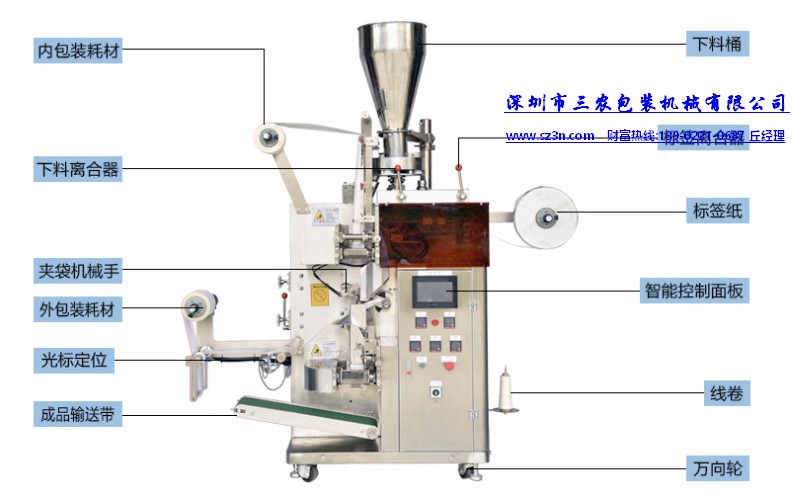

內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機，袋泡茶內外袋包裝機Line inside and outside the bag with the tea bag packing machine, inside and outside the bag of tea bag packaging machine, tea bag inside and outside the bag packaging machine

一、內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機的適用范圍：Line inside and outside the bag with the tea bag packing machine, bag tea bag packaging machine inside and outside of the scope of application:
本機適用于茶葉、藥茶、保健茶草根類等小顆粒物的內外袋一次性包裝。The machine is suitable for tea, herbal tea, health tea grassroots small particles inside and outside the bag, such as disposable packaging.

二、內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機的本機特點：Line inside and outside the bag with the tea bag packing machine, inside and outside the bag of tea bag packaging machine this machine features:

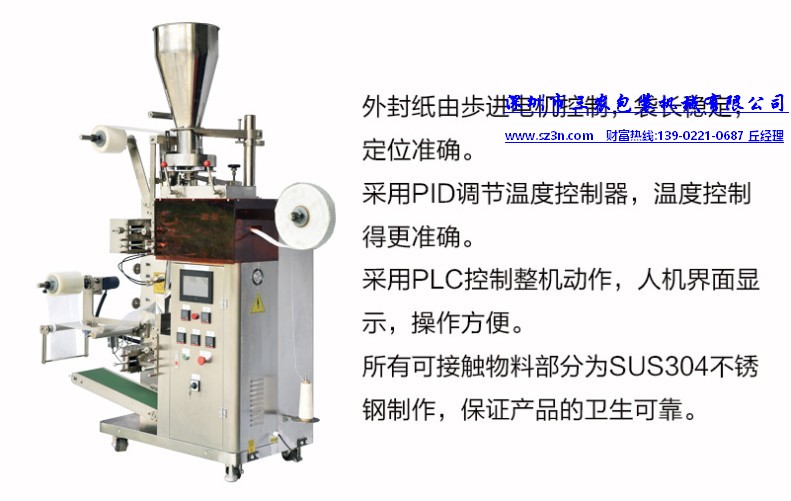

1.外封紙由步進電機控制，袋長穩定、定位準確；Paper WaiFeng consists of stepper motor control, bag length stable, accurate positioning;

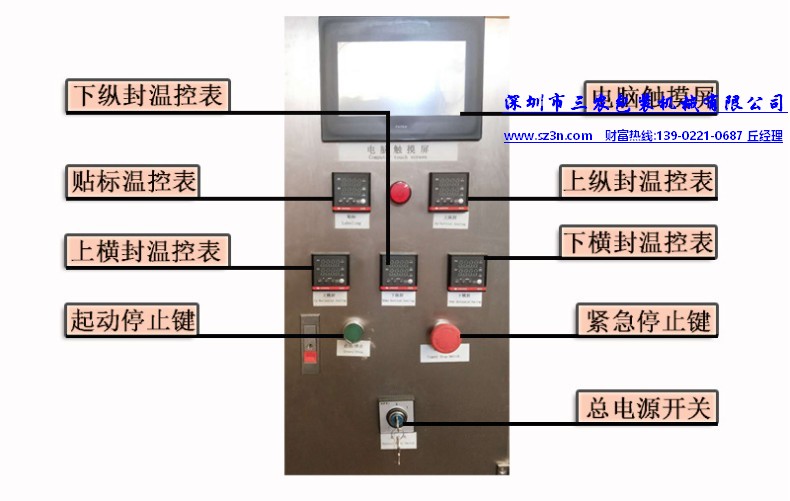

2.采用PID調節溫度控制器，溫度控制得更準確；Using the PID temperature controller, temperature control more accurate;
3.采用PLC控制整機的動作，人機界面顯示，操作方便； PLC control action of the machine, the man-machine interface display, easy to operate;
4.所有可接觸物料部分為SUS304不銹鋼制作，保證產品的衛生可靠；All parts contacting material of SUS304 stainless steel, ensure health of products;
5.部分工作氣缸采用原裝進口件，保證其工作準確與穩定。Part of the working cylinder adopts imported parts, ensure the accuracy and stability.
6.本機附加裝置可完成平口剪切、日期打印、易撕口等功能。 This machine can complete the flat cutting, date printing, easy tear etc. Function.

三、內外袋帶線帶標袋泡茶包裝機，內外袋袋泡茶包裝機的主要技術參數：Line inside and outside the bag with the tea bag packing machine, bag tea bag packaging machine inside and outside the main technical parameters:

型號：SN-169 Model: SN - 169
封口形式：三邊封     計量范圍： 1-15克/包    生產能力：30-60袋/分鐘
Sealing form: three edge-sealing   measuring range: 1-15 g/bag   production capacity: 30 to 60 bags/min
內袋尺寸：長50-75mm；寬50-75mm 。外袋尺寸：長85-120mm；寬75-95mm。
The bag size: 50-75mm long; Wide 50-75mm.  outside bag size: 85-120mm long; 75-95mm wide
標簽尺寸：25X25（長*寬）  輸入電源：220V/50HZ單相   總功率： 3.7kw
Label size: 25 x25 (length * width)  input power: 220 v / 50 hz single-phase   total power: 3.7 kw
整機重量：650KG     外型尺寸：1050X700X1300（長*寬*高mm）
The weight: 650 kg   appearance size: 1050 x700x1300 (length * width * height in mm)
