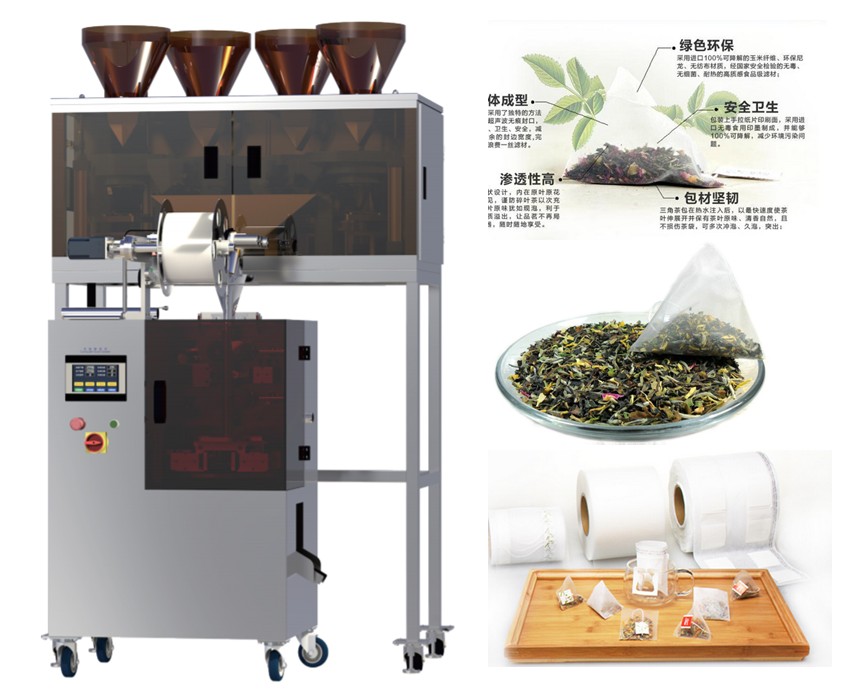

尼龍三角袋茶葉包裝機，尼龍三角包袋泡茶包裝機，三角茶包自動包裝機Nylon triangle tea bag packaging machine, nylon package triangle tea bag packing machine, triangle tea bag packaging machine automatically
尼龍三角袋茶葉包裝機，尼龍三角包袋泡茶包裝機，三角茶包自動包裝機的特征：Nylon triangle tea bag packaging machine, nylon package triangle tea bag packing machine, automatic triangular tea bag packaging machine features:
1．通過超聲封口切斷方式，使抽出性突出且外觀形狀漂亮的茶包的生產成為可能。By ultrasonic cutting off, make out sex and beautiful shape tea production is possible.
2．包裝能力達3000袋/小時。Packaging capacity up to 3000 bags per hour.

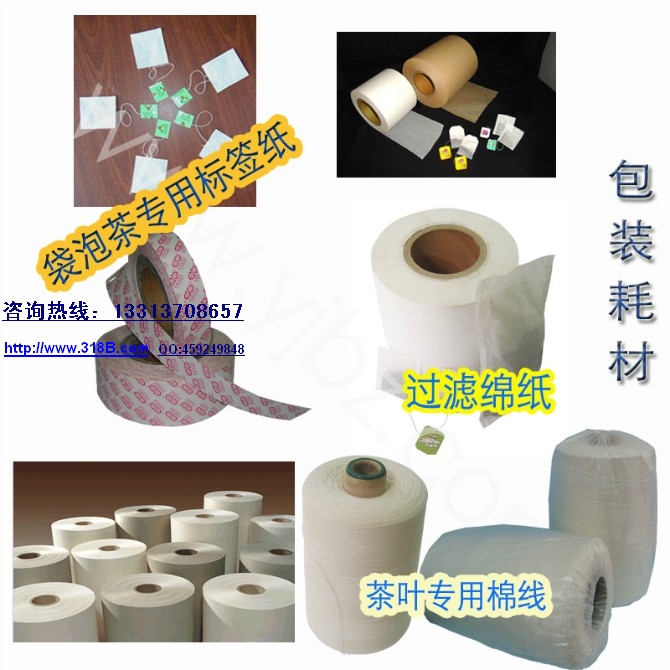

3．用帶標簽的包裝材料可以簡單生產出帶標簽的茶包。A simple labeled packaging materials can produce tea bags with labels.
4．電子稱計量方式可以很容易在變換填充物，計量精準。Electronic scale metering can be easily in the transformation filler, measuring precision.

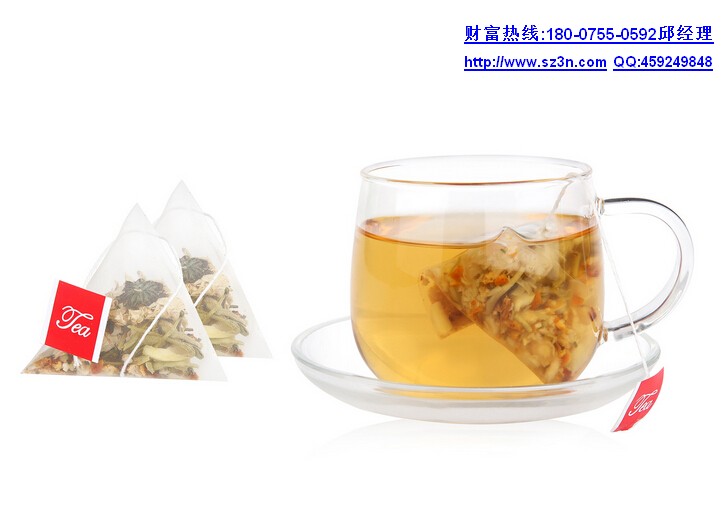

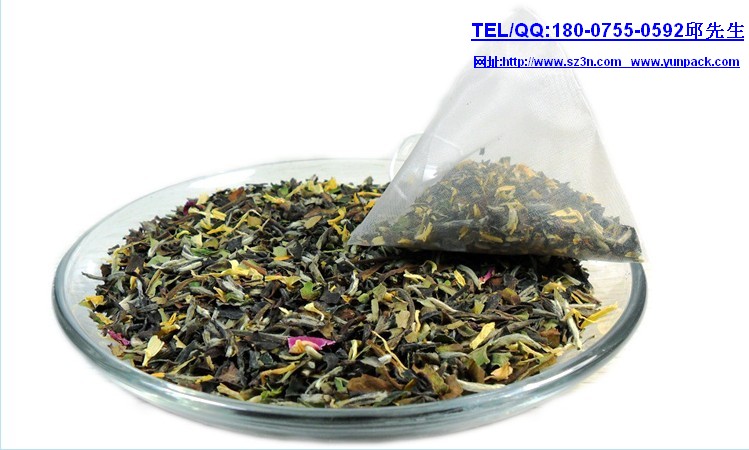

尼龍三角包袋泡茶包裝機該三角茶包包裝機適用于：黑茶，白茶，黃茶，藤茶，養生茶，八寶茶，養肝茶，綠茶、紅茶、花茶、咖啡、中國茶、健康茶、中藥茶、顆粒等立體三角包包裝。The triangle tea bag packaging machine is suitable for: black tea, white tea, yellow tea, rattan tea, health tea, sweet tea, nourishing the liver tea, green tea, black tea, scented tea, coffee, Chinese tea, health tea, herbal tea, particle, etc in the stereoscopic triangle bag packaging.
尼龍三角袋茶葉包裝機，尼龍三角包袋泡茶包裝機，三角茶包自動包裝機的標準規格：Nylon triangle tea bag packaging machine, nylon package triangle tea bag packing machine, automatic triangular tea bag packaging machine standard specifications:
1．生產數量計數器 2．主馬達保護裝置（循環超時） 3．馬達變壓控制 4．滑動容積超負荷保護裝置
1. Production quantity counter 2. Main motor protection device (circulation timeout) 3. The motor variable voltage control 4. Sliding volume overload protection device
5．步進馬達縱向輸送 6．檢查出標簽（檢驗出時有錯誤報警） 7．開門安全限制開關
5. Stepper motor longitudinal conveying 6. Check out the tag (tested from time to tome error alarm) 7. Open the door safety limit switches
8．包裝材料張力自動調節裝置 9．無包裝材料警報 10．超聲波負荷警報 11．靜電除去裝置
8. Packaging material tension automatic adjustment device 9. No packaging materials alarm 10. Ultrasonic load alarm 11. Electrostatic remove device
尼龍三角袋茶葉包裝機，尼龍三角包袋泡茶包裝機，三角茶包自動包裝機的技術參數：Nylon triangle tea bag packaging machine, nylon package triangle tea bag packing machine, automatic triangular tea bag packaging machine's technical parameters
| 型號 | SN-SJB02 | SN-SJB03S | SN-SJB04S |
| 制袋尺寸 | 寬（W）：60-80 長（L）： 40-80 |
寬（W）：60-80 長（L）： 40-80 |
寬（W）：60-80 長（L）： 40-80 |
| 包裝速度 | 20-30 bags/min | 30-40 bags/min | 30-50 bags/min |
| 計量范圍 | 1-7g | 1-7g | 1-7g |
| 電 源 | 220V/2KW | 220V/2.2KW | 220V/2.2KW |
| 氣 源 | 0.8mpa | 0.8mpa | 0.8mpa |
| 耗 氣 量 | 0.6m3/min | 0.6m3/min | 0.6m3/min |
| 整機重量 | 400kg | 600kg | 650kg |
| 外型尺寸 （長×寬×高） |
1200*920*2060mm | 1600*800*2650mm | 1600*800*2650mm |
